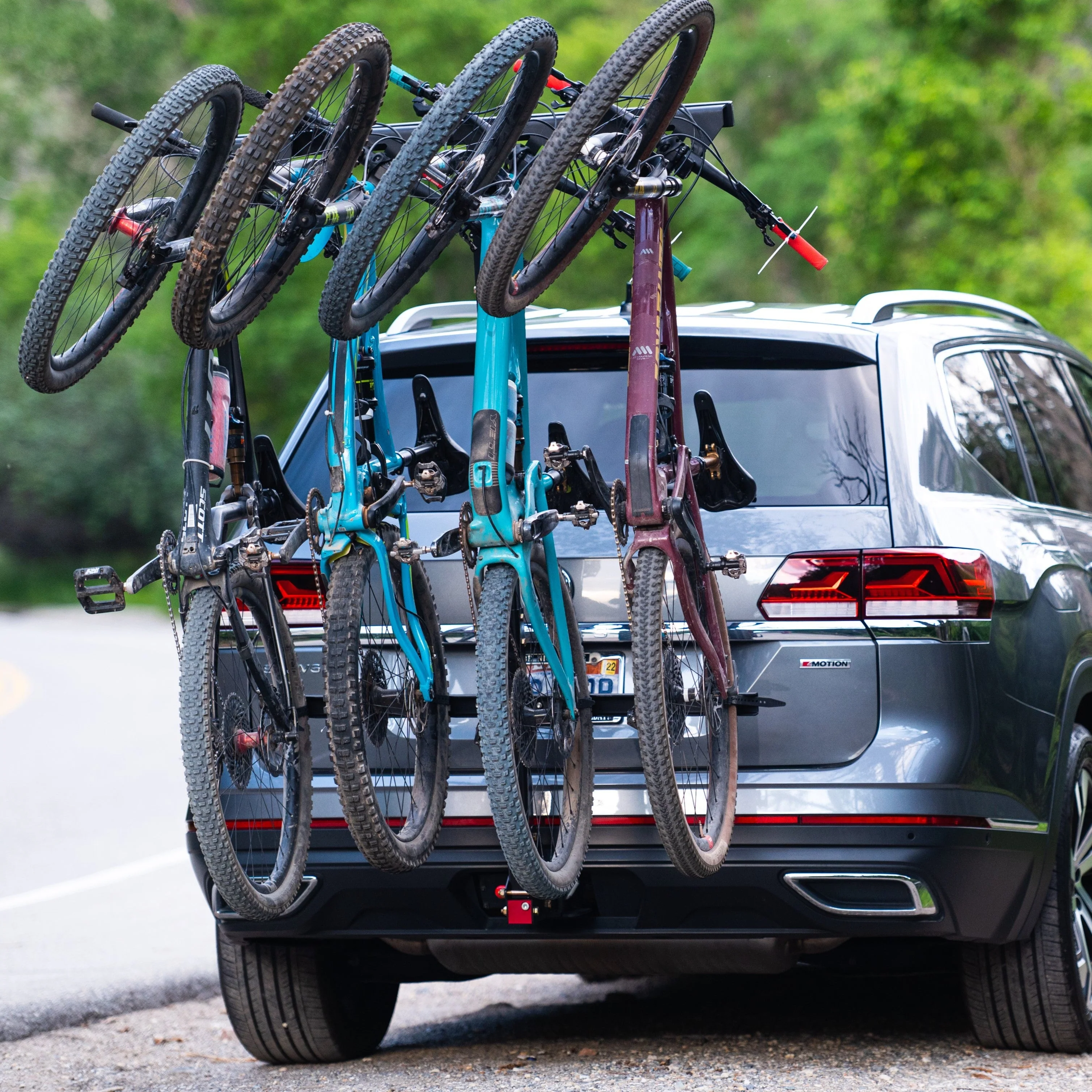

• Hauls up to 4 bikes — secure vertical mounting without lifting overhead

• Handlebar-mounted system — avoids spoke damage and keeps frames protected

• Lightweight aluminum build — easy to handle, even for solo loading

• Rear-access tilt system — reach your trunk without removing bikes

• Ultra-stable anti-wobble mount — includes hardware for a tight, confident fit

• Folds flat for storage — compact footprint when not on the vehicle

• Modular with all Chuck gear — swaps instantly with the Chuck Bucket using the same base post

• Works with most bike styles — mountain, gravel, kids’, fat bikes, and e-bikes (within weight limits)

• Powder-coated for durability — weather-resistant and built for year-round adventure

What’s Included

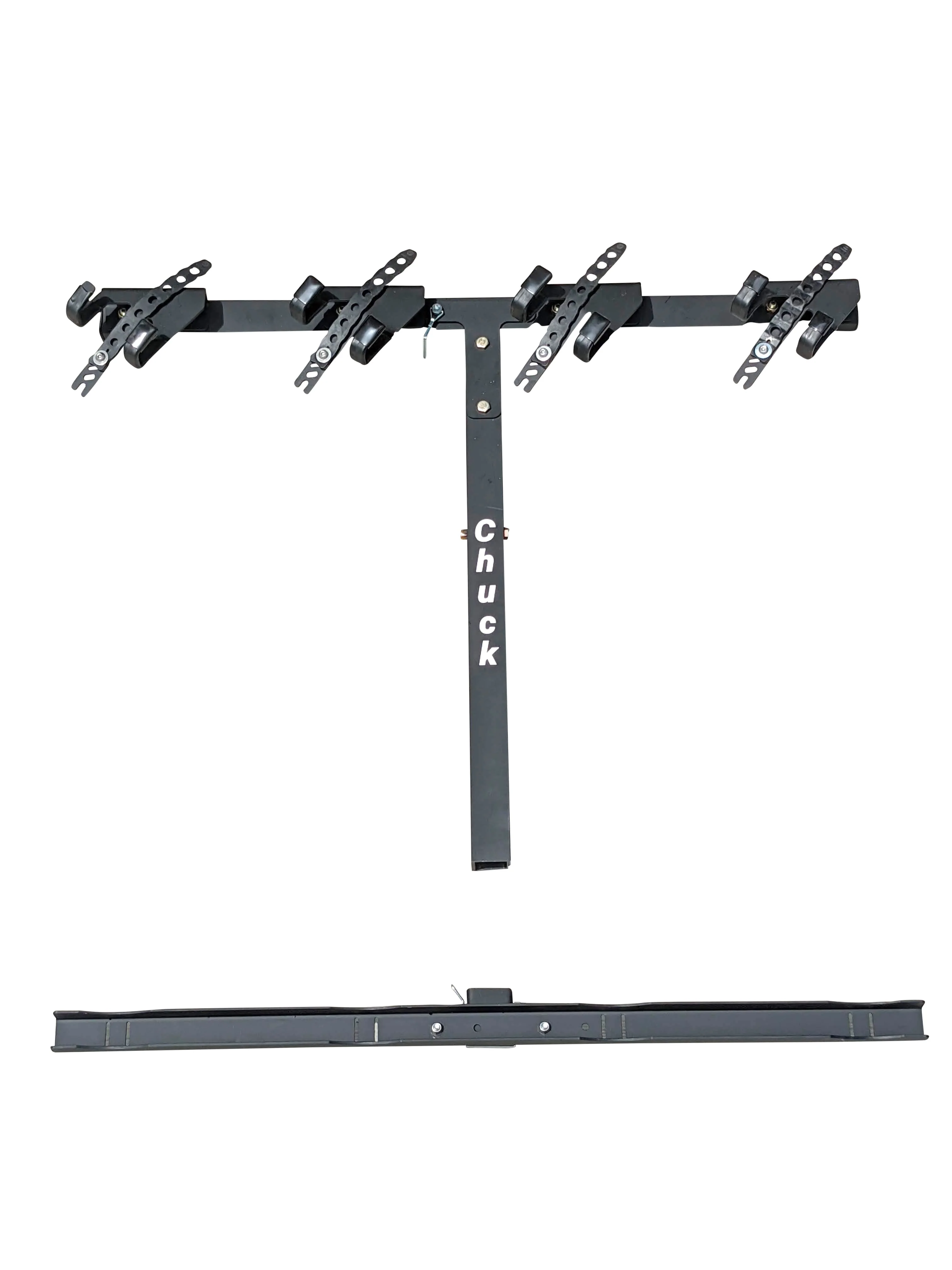

• Chuck Rack (4-bike configuration)

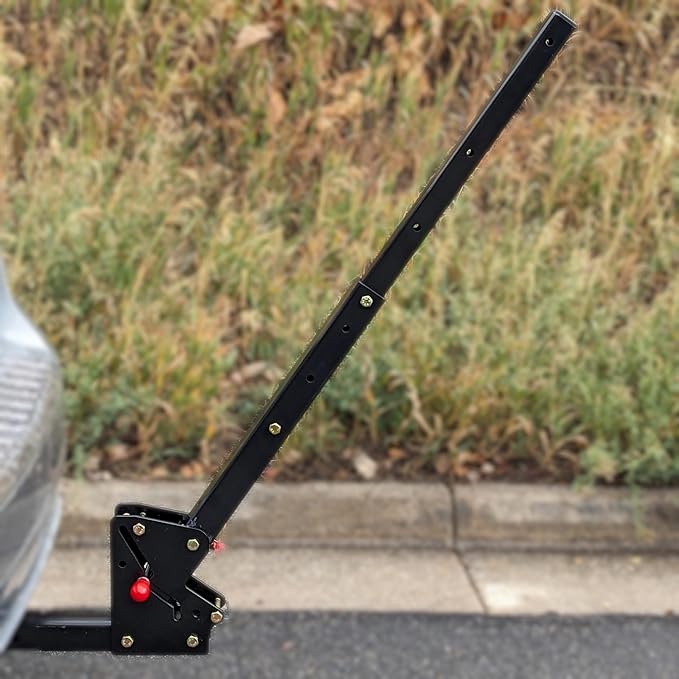

• Full Tilt Base Post (fits standard 2” hitch)

• Mounting pin + safety clip

• Built-in anti-wobble mechanism + install tool

• Rubber protection guards

• Setup instructions + tools for assembly

Specifications

Bike Capacity: 4 bikes (expandable to 6 with extenders, sold separately)
Material: Powder-coated aluminum rack + steel base post
Weight: ~35 lbs (rack), ~20 lbs (base post)
Max Load: ~200 lbs total (varies by bike distribution)

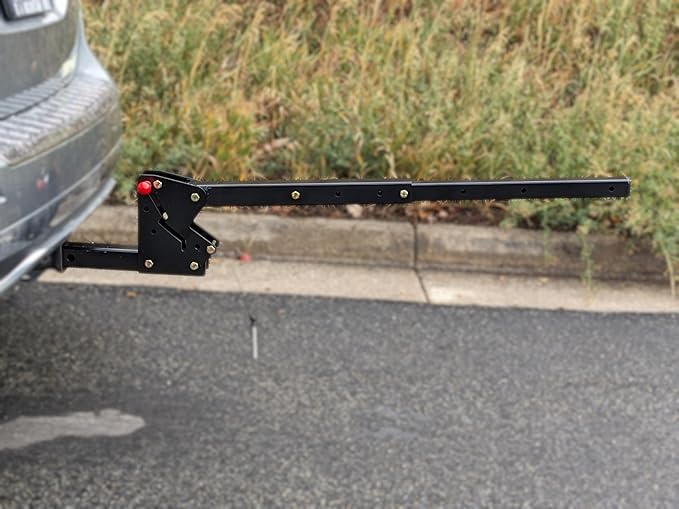

Tilt Angle: 2-stage tilt (up to 90°)
Hitch Size: Standard 2” receiver (1.25” adapter available separately)
Compatible Tire Types: Standard MTB, gravel, kids’, plus most fat tires
Storage: Rack folds flat when not in use



Note for bikes with computers: Our rack holds your bike by the handlebars around the stem. If you have a large center mount computer or if your computer is mounted next to the stem it may interfere with the hook and need to be relocated further out on the handlebar.
